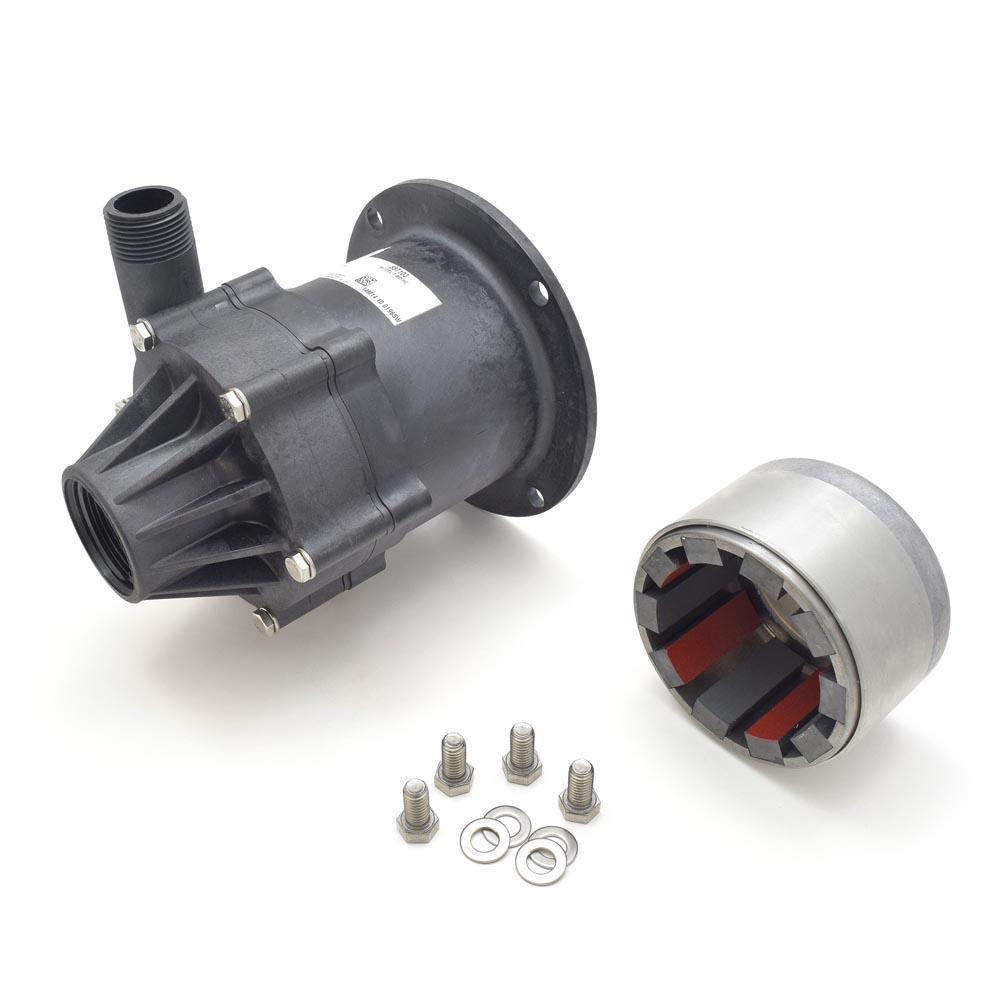

Pump Head Less Motor
The 587103 from Little Giant is a Pump Head Less Motor with a 1-1/2" FNPT Intake and 1" MNPT Discharge was specifically engineered to handle highly corrosive chemicals, solutions and other special fluids with high efficiency and long term dependability. Little Giant 7-MD-HC has glass-filled polypropylene sulfide magnet housing, volute and impeller to ensure ultimate chemical resistance. Only chemical resistant materials are in contact with fluids. Glass-filled polypropylene sulfide (Ryton) Impeller with carbon bushing allows a Run-dry capability of up to eight hours without damage. Little Giant 7-MD-HC boasts leakproof, seal-less magnetic drive, Fluid Temperature operation up to 200F and Ambient Air Temperature up to 77F. Ceramic shaft seal, thrust washers and Viton parts are 99.5% pure alumina provide a longer service life, excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Only chemical resistant materials are in contact with fluids.
Features:
- Specific Gravity - up to 1.1;
- Ambient Air Temperature - up to 77F;
- Fluid Temperature - Up to 200F;
- Back Plate: Glass-filled Polyphenylene Sulfide (Ryton);
- Volute: Glass-filled Polyphenylene Sulfide (Ryton);
- Impeller Assembly: Glass-filled Polyphenylene Sulfide (Ryton) w/carbon bushing;
- O-ring: Viton;
- Thrust washers: Ceramic;
- Shaft: Ceramic;
Technical Specifications:
- Intake: 1 1/2" FNPT;
- Discharge: 1" MNPT;
- Weight: 8 lbs;
- Height: 4.4";
- Width: 4.4";
- Length: 7.52";
| Product Specs | |
| Application | Replacement Part |
- Views: 4466
-
- Model: 587103
- MPN: 587103
- Availability: Discontinued
- Usually ships: 5-7
- $ 0.00
