Magnetic Drive Pump for Semi Corrosive, 1/25HP, 115V

Click Image for Gallery

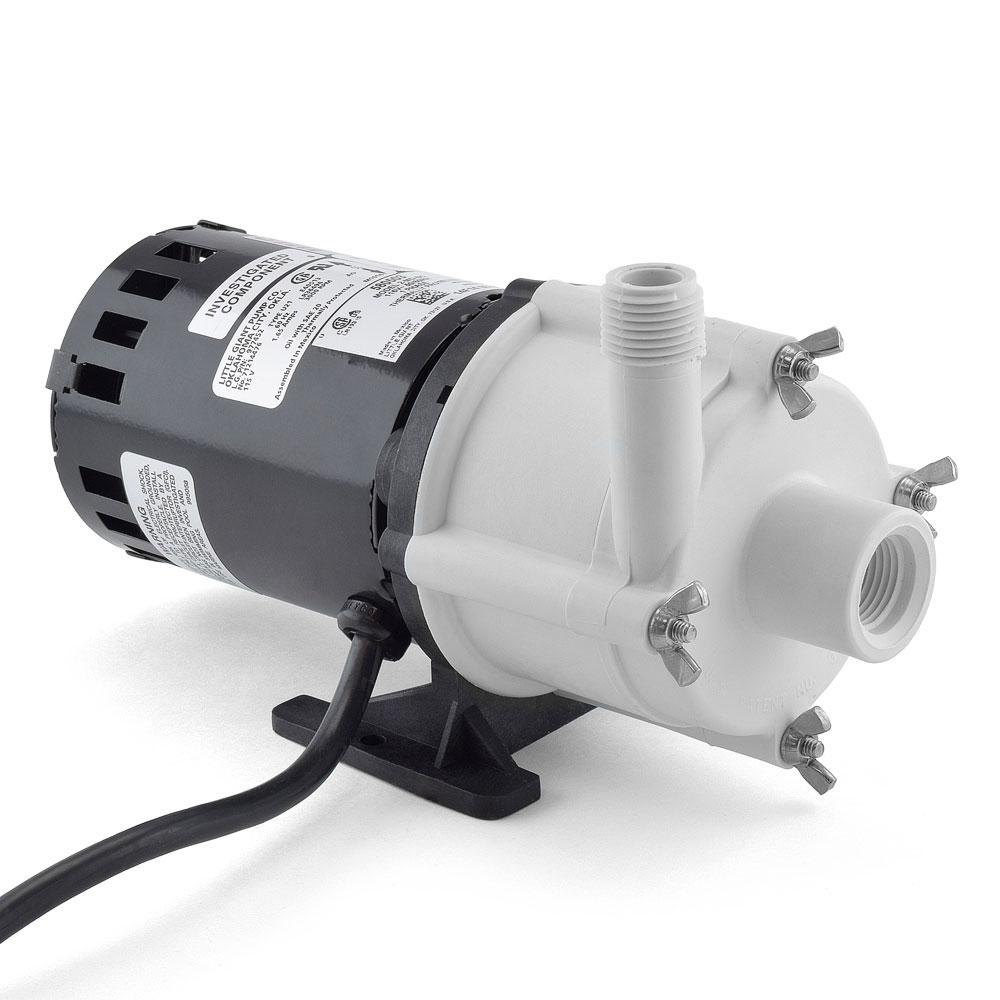

The 580503 from Little Giant is a Magnetic Drive Pump for Semi-Corrosive, 1/25HP, 115V. Designed for in-line, non-submersed use.

Little Giant MD-SC Magnetic Drive Pumps feature 6ft power cord, leakproof, seal-less magnetic drives, 99.5% pure alumina ceramic shaft and thrust washers. Volute, magnet housing and impeller are glass-filled polypropylene for excellent chemical resistance. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.

The Little Giant 2-MD-SC has 1/2" FNPT Intake and 1/2" MNPT Discharge.

Features:

Specific Gravity up to 1.1';
Thermally protected, open, fan-cooled motor;
6' power cord with 3-prong plug;
Sleeve bearings;
Ambient Air Temperature up to 77F;
Fluid Temperature up to 150F.

Technical Specifications:

Horsepower: 1/25HP;
Flow: 510 @ 1' of Head;
Cord Length: 6';
Shut Off Head: 14.6';
Voltage: 115V;
Intake: 1/2" FNPT;
Discharge: 1/2" MNPT;
Hertz: 50/60Hz;
Watts: 109W;
Weight: 6.25 lbs;
Height: 5";
Width: 4";
Length: 8.9";
Certification: UR/C-CSA.

Product Specs
Amperage:	1.43
Application	Mild to Strong Acids
Capacity (Gallons):	8.5
Cord Length:	6 Feet
Dimensions:	5"H x 4"W x 8.9"L
Flow at 1 FT Head:	510 GPH
Hertz:	50/60
Horse Power	1/25
RPM:	2900
Shutoff Head (ft.):	14.6'
Voltage	115v
Wattage	109
Weight (lbs):	6.25 lbs

Views: 11164
Model: 580503
MPN: 580503
Availability: Discontinued
Usually ships: 1
