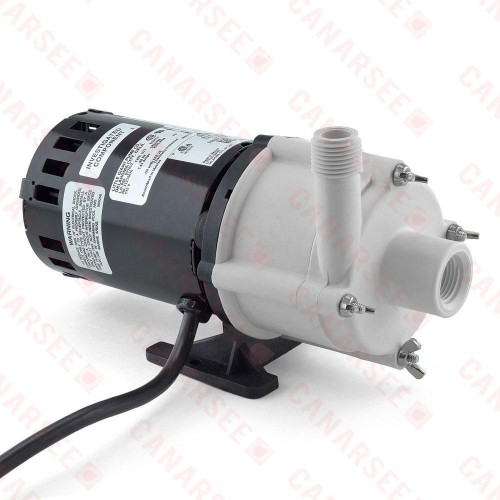

Magnetic Drive Pump for Mildly Corrosive, 1/30HP, 115V

Click Image for Gallery

The 580002 from Little Giant is a Magnetic Drive Pump for Mildly Corrosive, 1/30HP, 115V. It's for mildly corrosive chemicals and solutions, acids, alkalis, solvents, plating solutions, sterile solutions and other special fluids. Designed for in-line, non-submersed use in environments such as hospitals, chemical companies, photo labs, dry cleaning plants, car washes, machine shops, laboratories, manufacturing plants, print shops and wineries.

2-MD Magnetic Drive Pump features a 1/2" MNPT discharge with head capacity of 14.75'. Little Giant 2-MD with a 1/2" FNPT Intake was specifically engineered to handle mildly corrosive fluids with high efficiency and long term dependability. 2-MD Magnetic Drive Pump has glass-filled polypropylene magnet housing and volute to ensure ultimate chemical resistance. Only chemical resistant materials are in contact with fluids. Little Giant 2-MD boasts Glass-filled polypropylene and ceramagnet "A" (ceramic type) Impeller; leakproof and seal-less magnetic drive, Fluid Temperature operation up to 150F and Ambient Air Temperature up to 77F. Titanium shaft, thrust washers and Nitrile O-ring seal provide a longer service life, excellent wear and trouble-free service. Little Giant's powerful 1/30 HP Open FC, thermally protected, totally enclosed, fan-cooled motor with ball bearings and thermal overload protection delivers 5.5 GPM of fluids at 9'. Pumping heads of 2-MD are easily rotated, cleaned or serviced with no special tools required.

Features:

Specific Gravity - up to 1.1';
Ambient Air Temperature - up to 77F;
Fluid Temperature - Up to 150F;
6' power cord and 3-prong molded plug;
Sleeve Bearings;
Listings: UR/C-CSA;

Technical Specifications:

Horsepower: 1/30 HP (3100 RPM);
Maximum flow rate: 8.2 GPM (510 GPH @ 1');
Cord Length: 6';
Intake: 1/2" FNPT;
Discharge: 1/2" MNPT;
Shut Off: 14.6';
Voltage: 115 V;
Hertz: 60 Hz;
Watts: 100 W;
Weight: 6.25 lbs;
Height: 4.3;
Width: 4;
Length: 8.5;

Product Specs
Amperage:	1.5
Application	Mild Acids
Capacity (Gallons):	8.5
Cord Length:	6 Feet
Dimensions:	4.3"H x 4"W x 8.5"L
Flow at 1 FT Head:	510 GPH
Hertz:	50/60
Horse Power	1/30
RPM:	3100
Shutoff Head (ft.):	14.6'
Voltage	115v
Wattage	100
Weight (lbs):	6.25 lbs

Views: 9076
Model: 580002
MPN: 580002
Availability: Discontinued
Usually ships: 1
