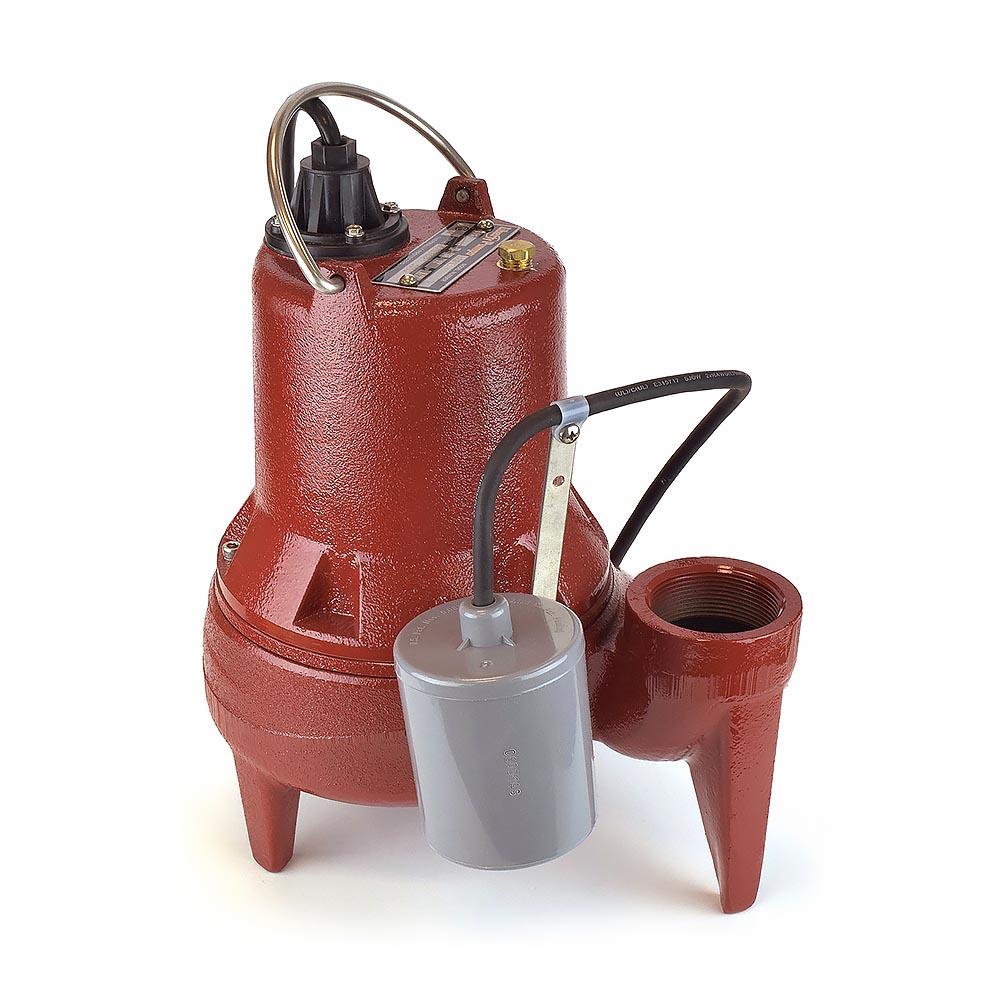

Automatic Sewage Pump w/ Wide Angle Float Switch, 1/2HP, 25' cord, 115V
The LE51A-2 from Liberty Pumps is an Automatic Sewage Pump w/ Wide Angle Float Switch, 1/2HP, 25' cord, 115V. In the event of switch failure, the submersible sewage pump cord can be separated and plugged into the electrical outlet, directly bypassing the switch. The turn-on level for this submersible sewage pump is approximately 12" to 16" above the bottom of the basin. The turn off level is approximately 6" above the bottom of the basin. This Liberty sewage pump is capable of reaching a max flow of 112GPM at 25' total dynamic head.
The Liberty Pump LE51A-2 has a discharge of 2" FNPT and features a 2-vane semi open impeller that can handle solids up to 2". The Liberty sewage pump motor is oil filled and thermally protected. The rotor shaft is made of 416-stainless steel and is supported by lower and upper ball bearings.
Features:
- Heavy cast iron construction;
- Oil filled, thermally protected motor;
- Permanently lubricated bearings;
- 2-vane, corrosion resistant HYTREL impeller;
- All stainless steel fasteners and rotor shaft;
- Quick-disconnect 25' standard power cord allows replacement of cord in seconds without breaking seals to motor;
Technical Specifications:
- Horsepower: 1/2HP;
- Cord length: 25';
- Discharge: 2" FNPT;
- Solids Handling: up to 2";
- Shut-off Head: 25';
- Voltage: 115V;
- Amps: 12;
- Hertz: 60 Hz;
- Phase: 1;
- Maximum fluid temperature: 140°F;
- Height: 14";
- Width: 11.75";
- Weight: 42 lbs.;
- Minimum basin diameter: 18";
- Minimum basin depth: 24";
Warranty:
- 3 years manufacturer's warranty
| Product Specs | |
| Cord Length: | 25' |
| Discharge: | 2" FNPT |
| Flow at 5 FT Head: | 140 GPM |
| Horse Power | 1/2 |
| Shutoff Head (ft.): | 25 |
| Type: | Automatic |
| Voltage | 115v |
