Honeywell 1” Threaded Mixing Valve (Lead-Free), 70F-145F

-10%

Click Image for Gallery

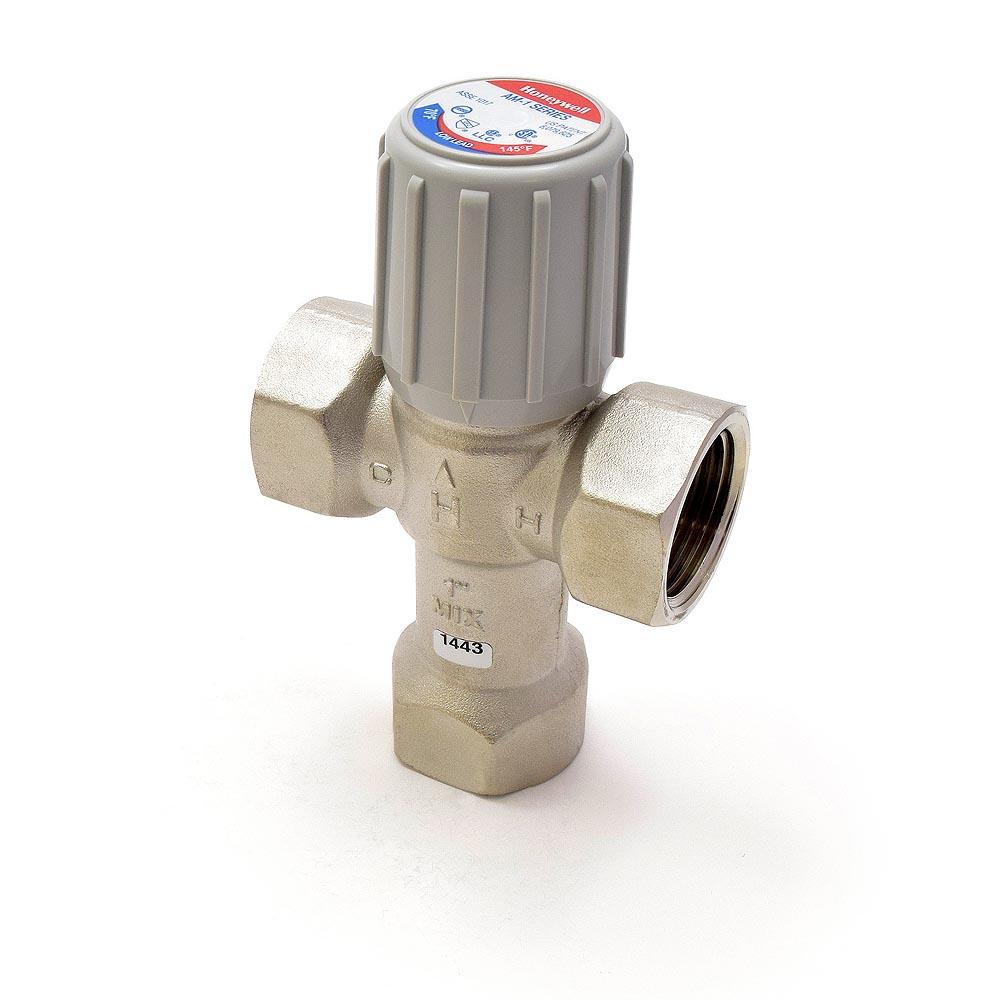

The AM102-1LF from Honeywell is a 1” Threaded Mixing Valve (Lead-Free), 70F-145F. It adjusts, maintains, and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.

Features:

Lead-Free compliant
Features dual purpose mixing or diverting values
Offers constant water temperature under changing operating conditions
Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
Maximum pressure 150psi and maximum temperature of 212°F (100°C)
Tamper-resistant design with nickel-plated brass construction and EPDM O-rings
Designed for easy maintenance and Teflon coating prevents mineral build-up and extends life.

Technical Specifications:

Application: Heat Pump Systems, Domestic water, Nursing homes, Public facilities, Automatic faucets, Radiant floor heating, Space heating, Combo systems, Solar hot water, Greenhouses, Industrial applications, Photo processing
Comments: Low lead Content <.25% by weighted average
Operating Temperature Range: 70°F to 145°F (21°C to 63°C)
Connection Type: NPT
Pipe Size: 1" (DN25)
Capacity: 4.3 Cv
Approvals: ASSE 1017.

Product Specs
Application	Point of Source
Connection Type	Threaded
Features	Lead Free
Flow Capacity (Cv):	4.3
Max Temp.	145°F
Min Temp.	70°F
Size1	1"
Standards Met:	ASSE 1017
Temperature Range (F):	70°F - 145°F
Type:	Mixing Valve

Views: 11479
Model: AM102-1LF
MPN: AM102-1LF
Availability: In Stock
Usually ships: within 1 business day(s)
