3/4" Gas Appliance Regulator w/ Vent Limiter (325-5V series)
Click Image for Gallery

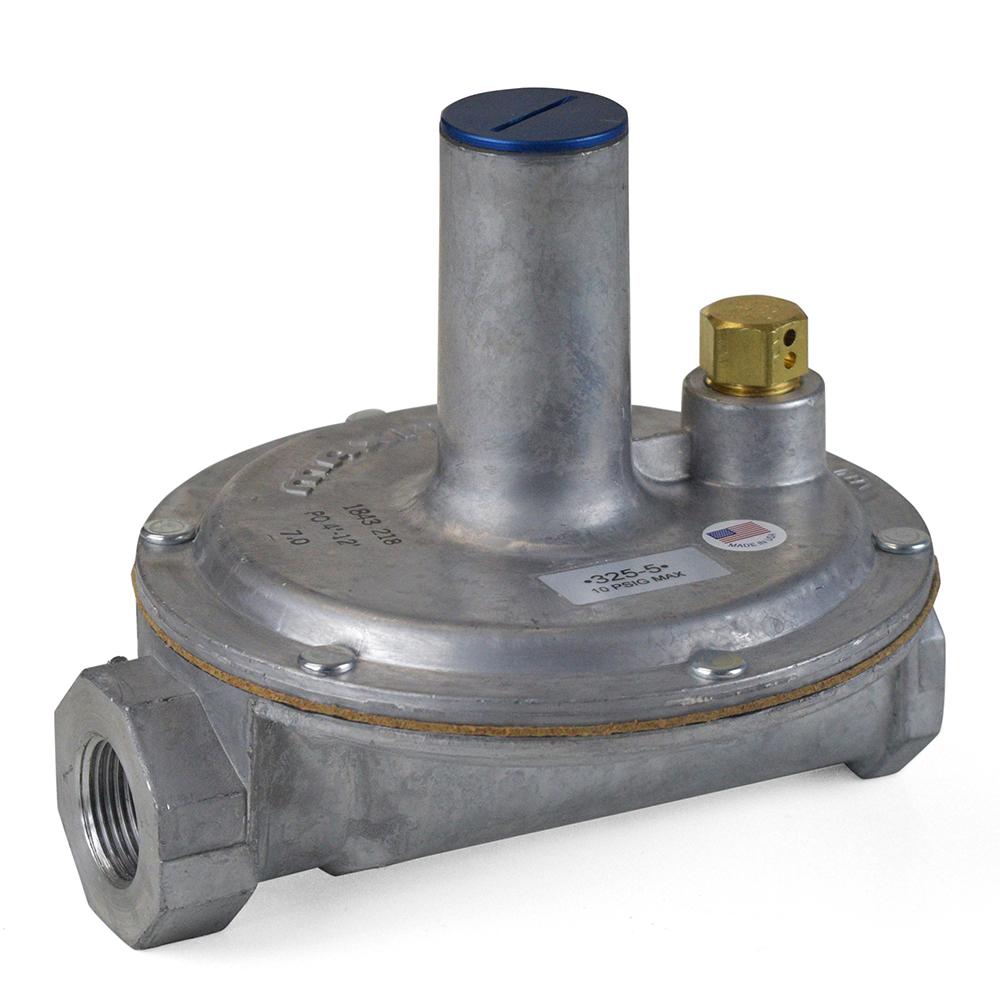

325-5V series (replaces older 325-5 series), Maxitrol 3/4" gas appliance regulator with factory-installed 12A39 vent limiter.
NOTE: This product is intended for installation by a licensed gas professional.
- Inlet/Outlet Connection: 3/4" NPT
- Rated Inlet Pressure (CSA Certified): 5 psi (NG), 2 psi (LP)
- Outlet Pressure Range: 7" - 11" w.c. (White Spring)
- Factory-Set Pressure (w.c.): 7"
- Emergency Exposure Limits: 65 psi (Inlet Side Only)
- Capacity (Combined): 325,000 BTU/hr
- Max Individual Load (Single Appliance): 325,000 BTU/hr
- Operating Temperature Range (Ambient): -40 - 205°F
- Vent Connection: 3/8" NPT
- Housing material: Aluminum
- Dimensions (L x H): 5.9" x 5.3"
| Product Specs | |
| Max Ind Load | 325K BTU |
| Capacity | 325K BTU |
| Features | Vent Limiter Included |
| Product Type | Appliance Regulator |
| Size1 | 3/4" |
- Views: 4258
-
- Model: 325-5V-3-4
- MPN: 325-5V-3-4
- Availability: In Stock
- Usually ships: within 1 business day(s)
- $ 55.65
- 6 or more $ 51.25
