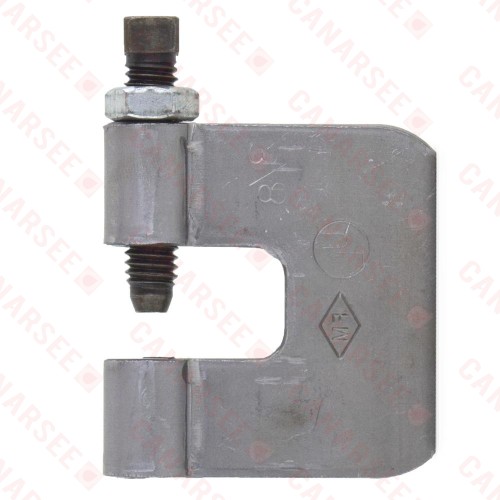

3/8” Steel C-Clamp w/ Locknut
Click Image for Gallery
The 250-038-PL from PHD is a 3/8” Steel C-Clamp w/ Locknut. It secures a standard 3/8" threaded rod to the bottom of an I-beam, wide-flange beam or bar joist. To ensure full engagement, the rod should make contact with the beam flange.
Technical Specifications:
- Threaded Rod Size: 3/8";
- Material: Low Carbon Steel;
- Clamp opening (max. beam thickness): 3/4";
- Max Recommended Load: 400 lbs;
- UL and FM Listed; Complies w/ Federal Specifaction A-A-1192A (Type 23); ANSI/SP-69 & SP-58 (Type 23) Certified.
- Views: 3293
-
- Model: 250-038-PL
- MPN: 250-0037PL
- Availability: Discontinued
- Usually ships: Upon availability
- $ 1.25
