1/2” FIP x 3/8” OD Compression Straight Stop Valve (Multi-Turn), Lead-Free
Click Image for Gallery

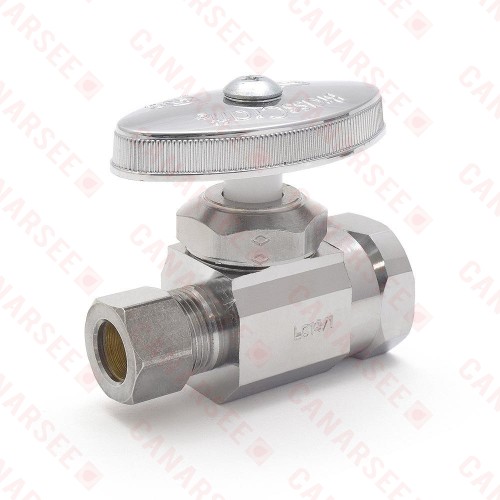

The OR12X-C from BrassCraft is a 1/2” FIP x 3/8” OD Compression Straight Stop Valve (Multi-Turn), Lead-Free.
Materials of Construction:
- Body: Compliant brass or Compliant brass (chrome plated);
- Stem: POM or Compliant brass;
- Bib & Packing Washers: Rubber;
- Packing Nut: Brass or Brass (chrome plated);
- Handle: Zinc die cast plated;
- ABS (plated) or Polycarbonate.
- Handle Screw: Zinc-plated steel;
- Compression Sleeve: Brass;
- Compression Nut: Brass or Brass (chrome plated).
Features:
- Machined one-piece brass body provides strength, durability, and long-lasting performance;
- Oval knurled handle provides a secure grip and smooth on/off operation;
- Easy-to-remove handle with screw attachment helps protect against accidental stop operation during rough-ins;
- 100% Compliant product.
Technical Specifications:
- Closing: Multi-Turn;
- Inlet: 1/2” Female Threaded;
- Outlet: 3/8” OD (1/4"" Nominal) Compression;
- Valve Type: Angle;
- Temperature: 40°F to 180°F;
- Maximum Pressure: 125 PSI.
| Product Specs | |
| Closing: | Multi-Turn |
| Features | Lead Free |
| Inlet: | 1/2” Female Threaded |
| Maximum pressure: | 125 PSI. |
| Outlet: | 3/8” OD (1/4"" Nominal) Compression |
| Temperature | 40°F to 180°F |
| Valve Type | Angle |
- Views: 7366
-
- Model: OR12X-C
- MPN: OR12X-C
- Availability: In Stock
- Usually ships: Upon availability
- $ 6.95
- 10 or more $ 6.60
