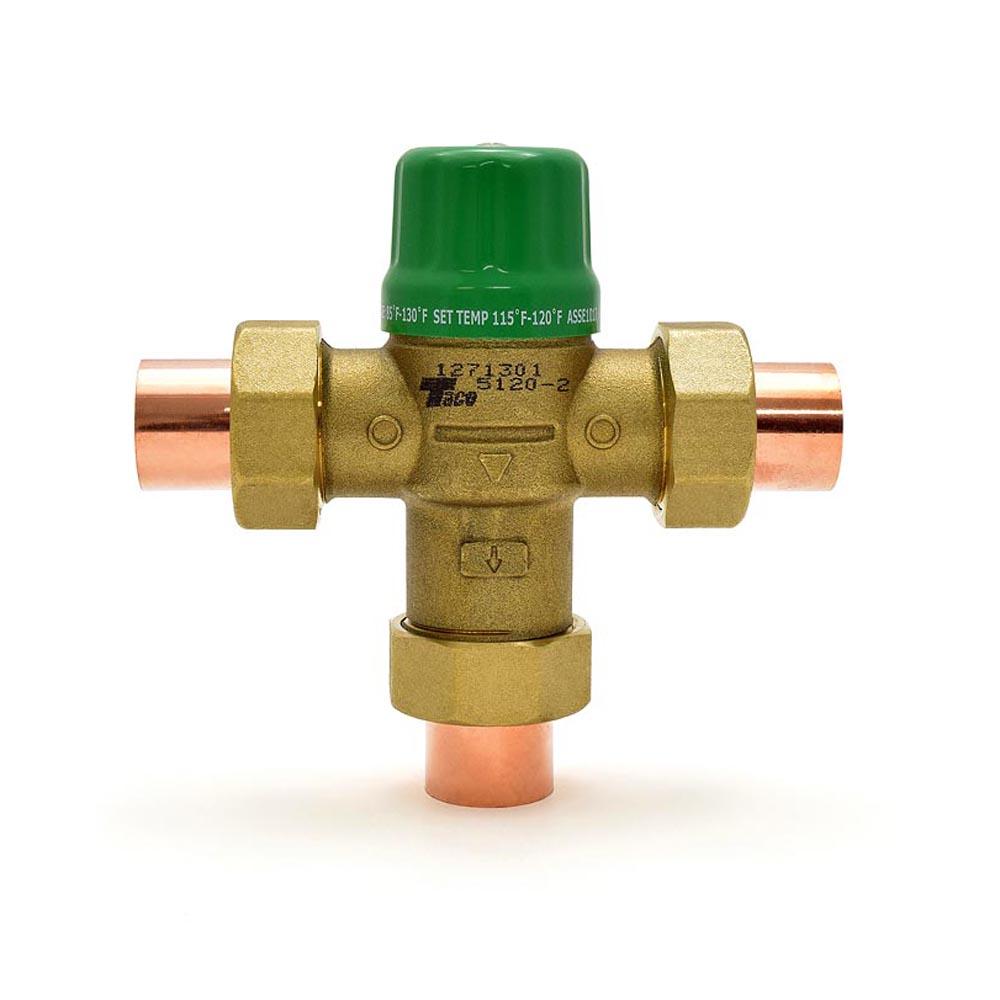

The 5123-C2 from Taco is a 3/4” Union Sweat Mixing Valve (Lead-Free), ASSE 1070, 85F-120F. It's designed for use at the water heater to distribute controlled water temperatures to the domestic hot water system and is suitable for use in Potable Water.
Taco's new 5123-C2 Low Lead Mixing Valve makes it ideal for use in the distribution of water through a domestic hot water system. The valve's unique design and advanced thermostatic element doesn't require routine maintenance and ensures a stable mixed water temperature throughout the valves adjustable range. The Second-generation material was tested and calibrated under closely controlled conditions ensuring durability and functionality.
|Accuracy of Outlet Temperature:||± 3°F|
|Approvals:||ASSE 1017 / 1070, CSA125.3, cUPC.|
|Cold Supply Temperature:||39-80°F (5-27°C)|
|Connections:||3/4" Union Sweat|
|Factory Set to:||115-120°F (41-45°C)|
|Heat Capacity:||1.8 Cv|
|Hot Supply Temperature:||120-180°F (49-82°C)|
|Maximum Flow:||14 GPM (54 L/Min)|
|Maximum Inlet Pressure:||200 psi (13.8 Bar)|
|Maximum Variation in Supply Pressure:||20%|
|Minimum Flow:||1 GPM (3.8 L/Min)|
|Minimum Temperature Differential Between Hot Supply and Mixed:||27°F (15°C)|
|Outlet Temperature Range:||85-120°F (29-49°C)|
