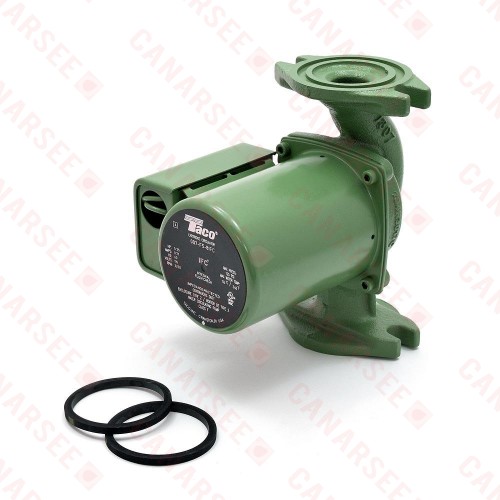

Taco 007-F5-8IFC Circulator Pump with IFC, 1/25 HP, 115V
Click Image for Gallery
The 007-F5-8IFC from Taco is a Cast Iron Circulator Pump w/ IFC, 1/25HP, 115V. It's designed to simplify piping, reduce installation costs and improve system performance. With an IFC (Integral Flow Check) inside the Taco 007-F5-8IFC model pump there is no need to install separate in-line flow check. The IFC reduces a pressure drop and increases flow performance versus in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.
Applications:
- Hydronic Heating/Cooling;
- Radiant Heating;
- Zoning with Pumps;
- Hydro-Air Fan Coils;
- And others.
Features:
- Low-Lead Compliant;
- IFC (Integral Flow Check);
- Unique replaceable cartridge;
- Unmatched reliablility;
- Quiet,efficient Operation;
- Self lubricating, no mechnical seal;
- Wide range of applications;
- Flanged connection;
- Maintenance free.
Technical Specifications:
- Horsepower: 1/25 HP;
- Flow Range: 0 – 17 GPM;
- Head Range: 0 – 8.5 Feet;
- Minimum Fluid Temperature: 40°F (4°C);
- Maximum Fluid Temperature: 230°F (110°C);
- Maximum Working Pressure: 125 psi;
- Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Rotated Flanged.
- Material: Cast Iron;
- Voltage: 115V;
- Hertz: 60Hz;
- Phase: 1;
- Amps: 0.71A;
- Approvals: cULus (Indoor use only), NSF/ANSI 372.
Warranty:
- 3 year manufacturer's warranty. Low-Lead Compliant;
Product Specs | |
Amperage: | 0.71 |
Application | Heating |
Connection Size: | 1" |
Connection Type | Flanged |
Flow Range (GPM): | 0-17 |
Head Range (ft.): | 0-8.5 |
Hertz: | 60 |
Horse Power | 1/25 |
Material1 | Cast Iron |
Max Flow (GPM): | 17 |
Max Head (Ft): | 8.5 |
Max Pressure (PSI): | 125 |
Phase: | 1 |
RPM: | 3250 |
Temperature Range (F): | 40° to 230°F |
Type: | Pump |
Voltage | 115v |
Warranty | 3-Year Warranty |
