Automatic Effluent Pump w/ Wide Angle Float Switch, 1-1/2HP, 25' cord, 208/230V

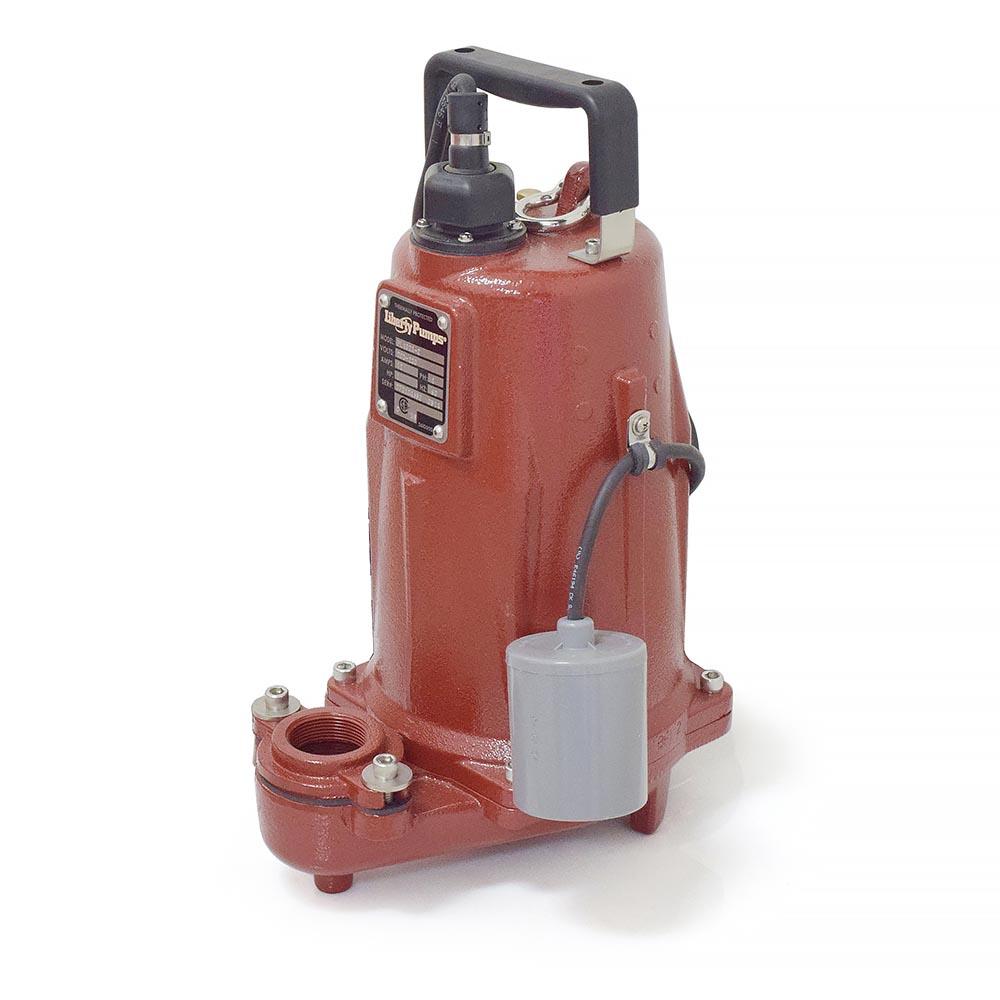

The FL152A-2 from Liberty Pumps is an Automatic Effluent Pump w/ Wide Angle Float Switch, 1-1/2HP, 25' cord, 208/230V. It features a wide-angle mechanical float switch, sealed in PVC housing, which has a series (piggyback) plug for manual bypass Operation. The switch on this submersible effluent sump pump has a turn-on level of 15" and turn-off level of 8". The Liberty FL152A submersible sump/effluent pump is equipped with a dual sized discharge of 1-1/2" FNPT and 2" FNPT for connection to either size pipe. This effluent sump pump can also handle solids up to 3/4" and has a shut-off head of 110'. These Liberty effluent pumps are designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. The Liberty FL152A is built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners.
Features:
- 3/4" Solids-handling;
- Heavy cast iron construction;
- 2 vane semi-open cast iron impeller;
- Dual shaft seals;
- Single float, mercury free level control;
- Fully adjustable pumping range;
- 2" FNPT threaded discharge with 1-1/2" FNPT flange provided;
- Quick-disconnect power cord - 25' length standard.
Technical Specifications:
- Horsepower: 1-1/2 HP;
- Operation Type: Automatic;
- Switch: Wide Angle Float;
- Maximum Flow: 127 GPM @ 5' head;
- Maximum Head: 110 ft;
- Discharge: 2" FNPT (1-1/2” FNPT cast iron flange provided);
- Solids Handling: 3/4";
- Maximum Fluid Temperature: 140°F;
- Cord Length: 25 ft;
- Construction: Cast Iron;
- Frequency of Revolutions: 3450 RPM;
- Voltage: 208-230V;
- Amperage: 15 A.
Warranty:
- 3 years manufacturer's warranty
| Product Specs | |
| Cord Length: | 25' |
| Flow at 10 FT Head: | 125 GPM |
| Flow at 5 FT Head: | 127 GPM |
| Horse Power | 1-1/2 |
| Shutoff Head (ft.): | 110 |
| Type: | Automatic |
| Voltage | 230v |
- Views: 5255
-
- Model: FL152A-2
- MPN: FL152A-2
- Availability: 5 - 7 Days
- Usually ships: Upon availability
- $ 1 323.75
