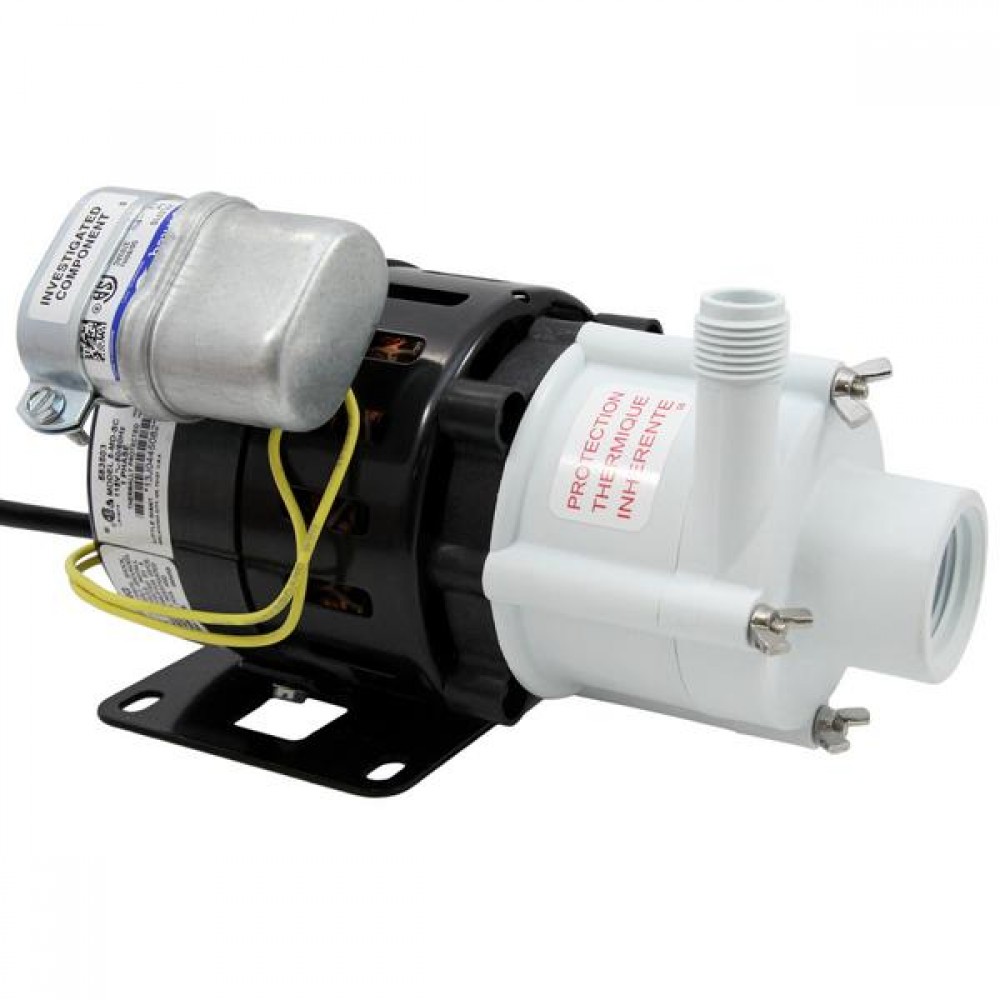

Magnetic Drive Pump for Semi-Corrosive, 1/8HP, 115V

Click Image for Gallery

The 583503 from Little Giant is a Magnetic Drive Pump for Semi-Corrosive, 1/8HP, 115V. Designed for in-line, non-submersed use in environments such as hospitals, chemical companies, photo labs, dry cleaning plants, car washes, machine shops, laboratories, manufacturing plants, print shops and wineries.

5-MD-SC Magnetic Drive Pump features a 1/2" MNPT discharge with head capacity of 27.5'. Little Giant 5-MD-SC with a 1" FNPT Intake was specifically engineered to handle semi-corrosive fluids with high efficiency and long term dependability. The newest TE-5-MD-SC has glass-filled polypropylene magnet housing, volute and impeller to ensure ultimate chemical resistance. Only chemical resistant materials are in contact with fluids. Little Giant 5-MD-SC boasts leakproof, seal-less magnetic drive, fluid temperature operation up to 150F and Ambient Air Temperature up to 77F. Ceramic shaft seal, thrust washers and Nitrile parts are 99.5% pure alumina provide a longer service life, excellent wear and trouble-free service. Little Giant's powerful 1/8 HP Open FC, PSC, thermally protected, totally enclosed, fan-cooled motor with ball bearings and thermal overload protection delivers 14 GPM of fluids at 6' total dynamic head. Pumping heads of 5-MD-SC are easily rotated, cleaned or serviced with no special tools required.

Features:

Specific Gravity - up to 1.1';
Ambient Air Temperature - up to 77F;
Fluid Temperature - Up to 150F;
Sleeve Bearings;
6' power cord and 3-prong molded plug;
Listings: UR/C-CSA;

Technical Specifications:

Horsepower: 1/8 HP (3000 RPM);
Maximum flow rate: 17.5 GPM (1050 GPH @ 1');
Maximum Head: 27.5';
Cord Length: 6';
Intake: 1" FNPT;
Discharge: 1/2" MNPT;
Voltage: 115 V;
Hertz: 50/60 Hz;
Watts: 208 W;
Weight: 9.25 lbs;
Height: 5.5";
Width: 5.5";
Length: 8.7";

Warranty:

1 year manufacturers warranty from the date of purchase.

Product Specs
Amperage:	2.0
Application	Mild to Strong Acids
Capacity (Gallons):	17.5
Cord Length:	6 Feet
Dimensions:	5.5"H x 5.5"W x 8.7"L
Flow at 1 FT Head:	1050 GPH
Hertz:	50/60
Horse Power	1/8
RPM:	3000
Shutoff Head (ft.):	27.5'
Voltage	115v
Wattage	208
Weight (lbs):	9.25 lbs

Views: 8688
Model: 583503
MPN: 583503
Availability: Discontinued
Usually ships: Upon availability
