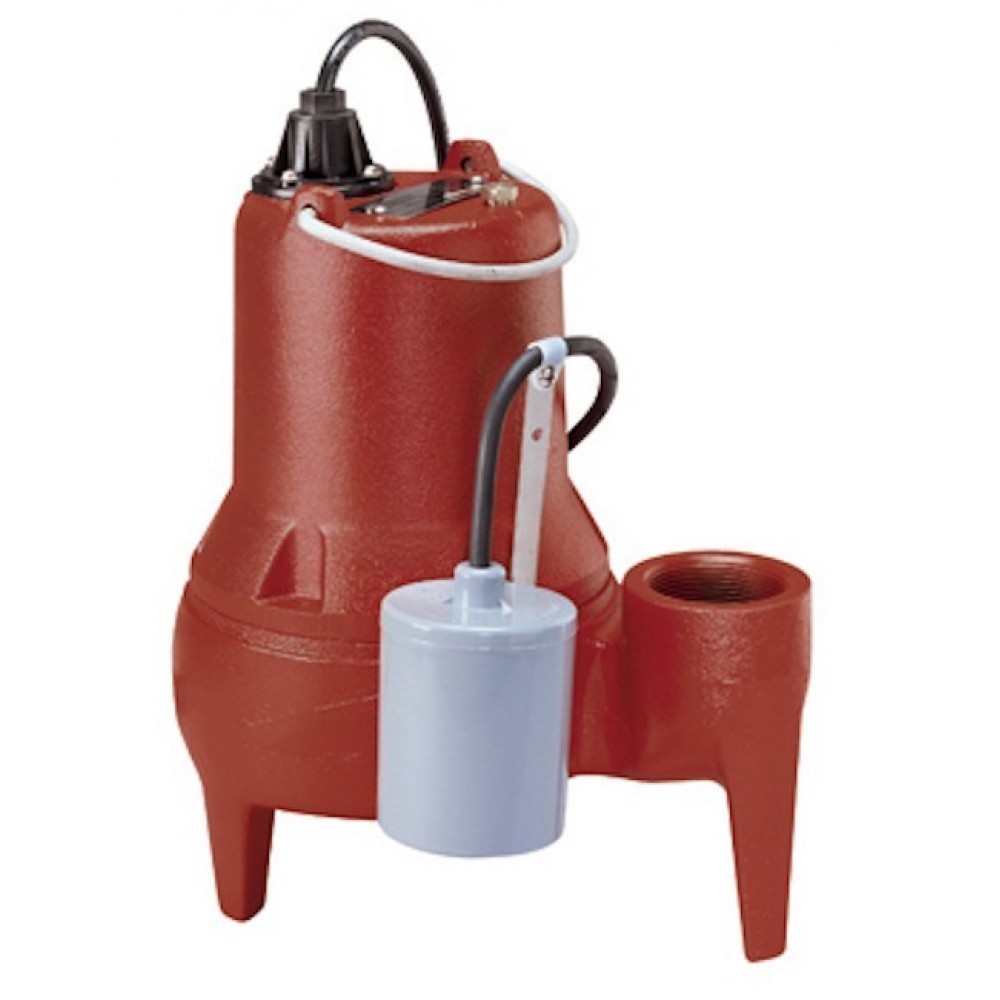

The Liberty Pump LE103M2-2 is a 230V, 1HP, 3-phase manual submersible sewage Pump with a 25' quick disconnect power cord. The Liberty submersible sewage pump features 2-vane, semi-open impellers that allow passage of 2" solids and has a shut-off head of 36'. The Liberty LE103M2-2 has a 2" NPT flanged discharge and is intended to be run using an approved liquid level control or approved motor control. The Liberty LE103M2-2 submersible sewage pump should not be ran dry. Be sure that when the Liberty sewage pump shuts off, at least 6" of fluid is left in the basin so the impeller remains submerged. Separate approved pump control device or panel for this submersible sewage pump is requires for automatic operation.
3-Phase Liberty sewage pumps require panel for automatic operation. See sewage accessories literature for complete information on all simplex and duplex controls. Check three phase submersible sewage pumps for proper rotation prior to installing pump(s) in basin. This Liberty sewage pump is constructed of heavy cast iron with a tough epoxy powder coat finish and stainless steel fasteners for years of trouble-free performance.
|Flow at 5 FT Head:||177 GPM|
|Shutoff Head (ft.):||36|
