1” Sweat Zone Valve w/ End Switch, 18” leads

1” Sweat Zone Valve w/ End Switch, 18” leads
1” Sweat Zone Valve w/ End Switch, 18” leads QR Code
QR-Code
Product Code: V8043E1020 UPC: 085267990098

MPN: V8043E1020

Availability:5

Weight:2.10 lb

Dimensions (L x W x H ): 6.00 x 5.00 x 4.00

Usually ships: 1 business days
: 1-1-4 business days
$76.95
4 or more $69.95

* Country:
* State:
* ZIP:
Qty: Add to Cart

Have any questions?
Contact us at 1-800-246-9552

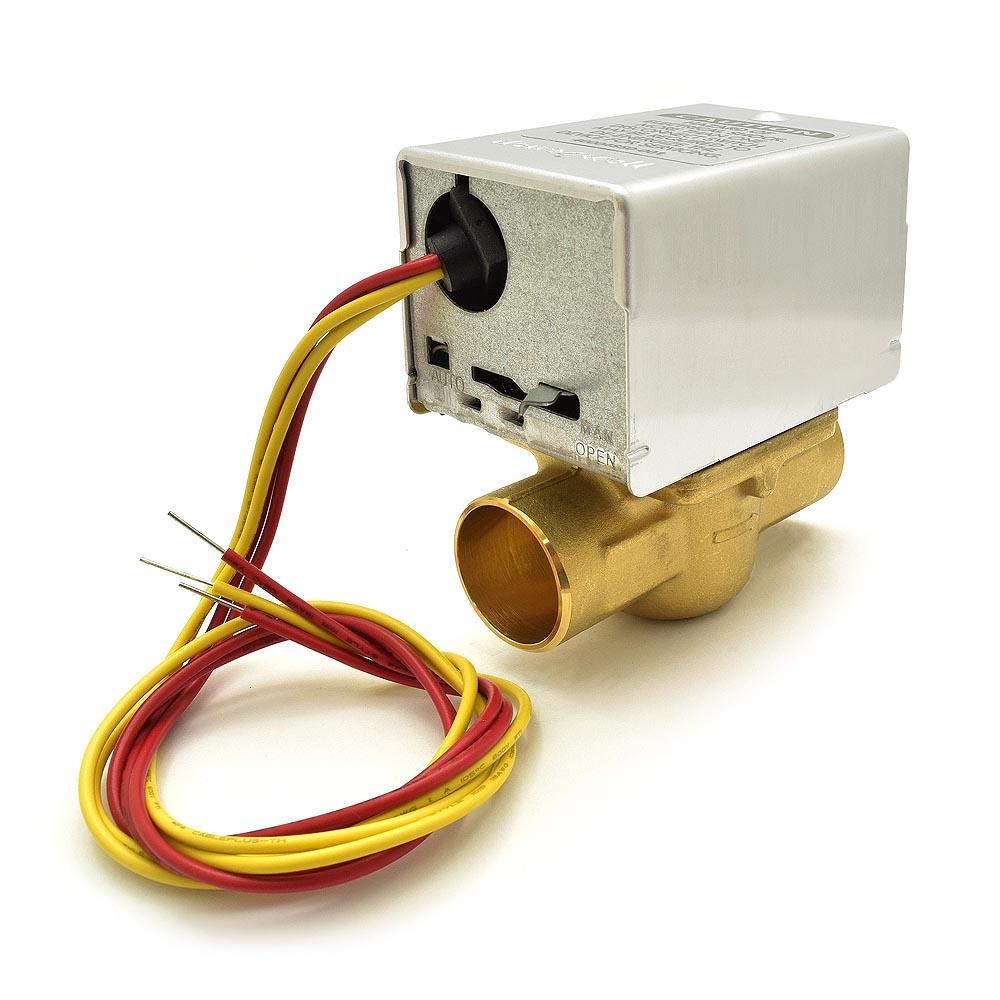

The V8043E1020 from Honeywell is a 1” Sweat Zone Valve w/ End Switch, 18” leads. It consists of a motorized actuator and valve assembly for controlling the flow of hot water to a heat exchanger such as a radiator, convector, finned baseboard radiator, or infloor radiant coil for space temperature control. The V8043 5000 series valves provide two-position, straight through control of supply water at up to 300 psi operating pressure.


Applications:

  • Hydronic Control. Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
  • Valve designed for cycling (not constantly powered on) applications;


Features:

  • Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure
  • valve returns to automatic position when power is restored
  • Compact construction for easy installation
  • Approvals of Underwriters Laboratories Inc (UL Component Listed: File MH11826 Vol. 1)
  • Actuator motor may be replaced without removing the valve body or draining the system
  • May be installed without disassembling the valve
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system


Technical Specifications:

  • Connection Type: Sweat
  • Pipe Size (inch): 1"
  • Pipe Size (DN): DN25
  • Body Pattern: Two-way, Straight-through
  • Capacity (Cv): 3.5 Cv
  • Capacity (Kv): 3 Kv
  • De-energized Position: Normally Closed
  • Maximum Close-off Pressure (psi): 20 psi
  • Fluid Temperature Range: 50 F to 200 F
  • Electrical Connections: 18" leads
  • Power Consumption: 7.7 VA
  • Nominal Timing: 15 sec
  • Valve Action: Spring return to close
  • Maximum Ambient Temperature: 125 F
  • Dimensions: 4" high x 3-1/2" wide x 2-3/8" deep
  • Type: 2 position
  • Auxiliary End Switch: SPST
  • End Switch Rating: 50 VA pilot duty @ 24 V
  • Static Pressure (psi): 125 psi
  • Materials (Body): Brass
  • Materials (Stem): Stainless Steel
  • Materials (Ball Plug): Buna-N (NBR) Rubber Ball
  • Materials (Packing O-rings): EPDM O-rings
  • Voltage: 24V
  • Manual Opener: Yes
  • Tradeline Value: Tradeline
Product Specs
Amperage:0.3
Application:Zoning
Body Pattern:2-Way
Connection Type:Sweat
Depth (Inches):2-3/8"
End Switch:Yes
Flow Capacity (Cv):3.5
Height:4"
Hertz:59
Material:Brass
Max Ambient Temp (°F):125°F
Max Close-Off PSI:20 psi
Max Pressure (PSI):300
Max Temp (F):200°F
Min Temp (F):50°F
Position:Normally Closed
Size:1"
Temperature Range (F):50°-200°F
Voltage:24v
Width:3-11/16"
Wiring:18" Leads
