36" SafetyShield Stainless Steel Gas Appliance Connector, 3/4" MIP (1/2" FIP) x 3/4" MIP (1/2" FIP), 1/2" ID
Click Image for Gallery

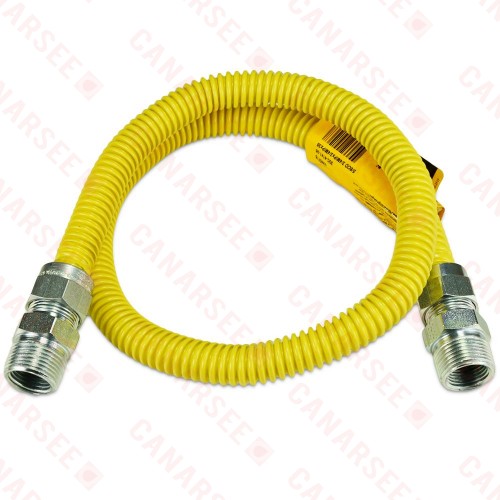

Dormont 36" long 1/2" ID (5/8" OD) standard gas connector for use with indoor/outdoor stationary appliances. SafetyShield yellow polymer coating provides unequaled corrosion resistance.
Technical Specifications:
Features:
Technical Specifications:
- Connections: 3/4" MIP (1/2" FIP) x 3/4" MIP (1/2" FIP)
- Hose Diameter: 1/2" ID (5/8" OD)
- Length: 36"
- Temperature: - 40°F to 150°F
- Maximum Pressure: standard line pressure up to 1/2 PSI
- Flow Capacity for Natural Gas (Straight Length): 125,000 BTU/hr
- Flow Capacity for LPG/Propan (Straight Length): 200,000 BTU/hr
- Tubing: Annealed, 304 stainless steel (ASTM A240)
- Coating: Custom formulated yellow polymer
- Nuts & Adapters: Zinc plated carbon steel
Features:
- 304 Stainless Steel tubing is flexible, durable and corrosion-resistant
- Dormont SafetyShield yellow coating protects the steel from common household chemicals and cooking oil, allows for easy identification and is standard for appliance gas connectors
- CSA certified and 100% leak tested
- Assembled in the USA.
| Product Specs | |
| Application | Appliance |
| ID: | 1/2" |
| Length | 36" |
- Views: 1764
-
- Model: 30C-4141-36
- MPN: 0240715
- Availability: In Stock
- Usually ships: Upon availability
- $ 14.95
- 25 or more $ 13.95
