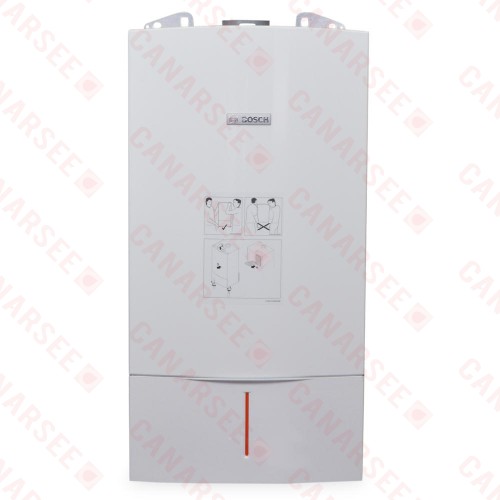

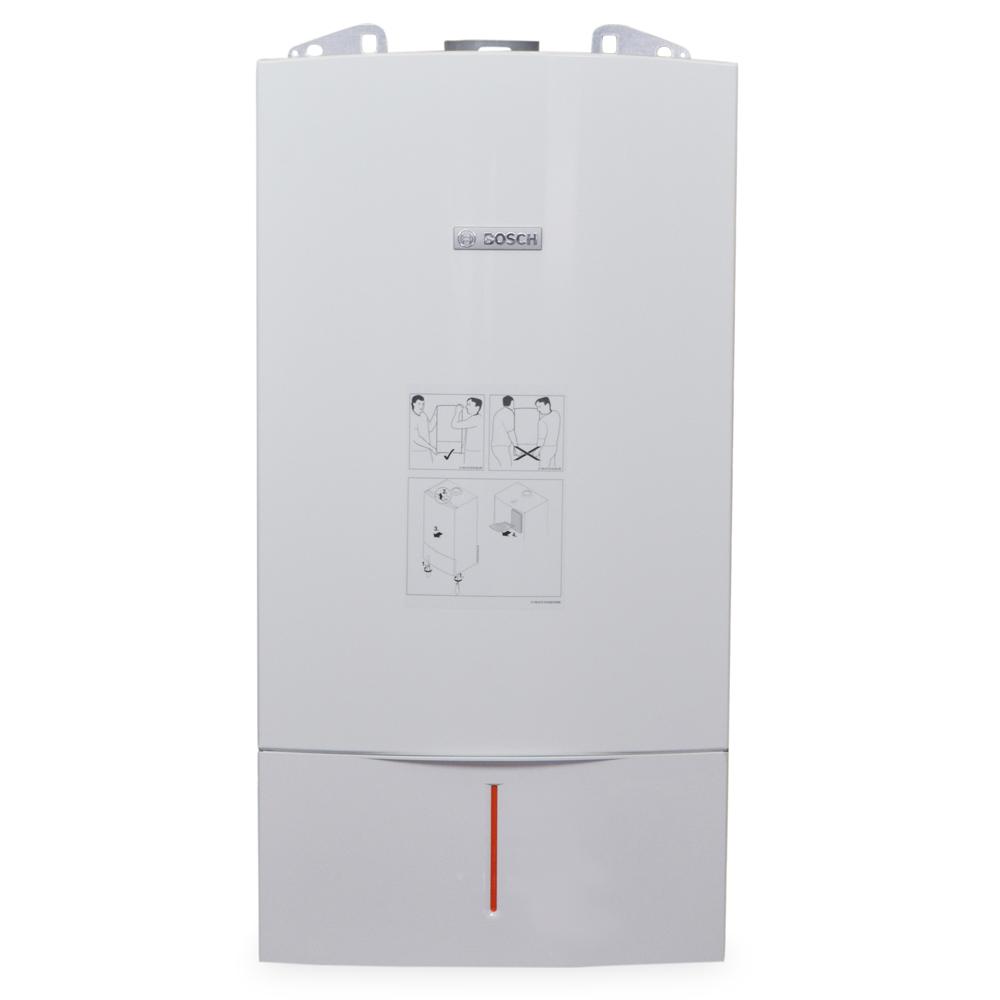

Greenstar 151 Condensing Gas Boiler, 117,000 BTU

Click Image for Gallery

Greenstar 151 Condensing Gas Boiler, 117,000 BTU QR Code

QR-Code Views: 1232

Model: Greenstar 151

MPN: ZBR42-3

Weight:103.60 lb

Dimensions (L x W x H ): 13.90 x 17.40 x 33.50

Usually ships: 2-3 business days

$3,620.95

Qty: Add to Cart

Add to Wish List Add to Compare

0 reviews • Write a review

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

Description Specification Reviews (0)

Bosch Greenstar series, 151-ZBR42 model, wall-mounted heat-only gas condensing boiler with 117,000 BTU (Net) rating. Energy Star rated. Includes built-in pump, LPG conversion kit, 3" twin pipe adapter and outdoor reset control.

Technical Specifications:

Input (BTU): 36,000 - 151,600
DOE Rating (BTU): 135,000
Net IBR Rating (BTU): 117,000
Efficiency (AFUE): 95%
Boiler Type: Condensing
Turndown (Modulation) Ratio: 5 : 1
Fuel Type: Natural Gas (NG) or Propane (LP)
System Type: Hydronic (Hot Water)
Boiler Connections: 1" NPT
Gas Connection: 3/4" NPT
Condesate Amount Produced: 0.9 Gal/hr (@ 86°F)
Max. Working Pressure: 30 psi
Max. Boiler Output Water Temperature: 190°F
Vent Size: 2" (up to 81ft w/ 1 elbows) or 3" (up to 100ft w/ 4 elbows)
Vent Material: PVC, CPVC, Single Wall (Rigid) PolyPropylene, Flex PolyPropylene, Cat III St. Steel
Inlet Gas Pressure (WC): 3.5 - 10.5" (for NG), 8 - 13" (for LP)
Max. Elevation: 6,000 ft (3% per 1,000ft de-rating)
Mounting Type: Wall-hung (wall-mounted)
Dimensions (Depth x Width x Height): 13.9" x 17.4" x 33.5"
Weight (lbs): 103.6
Water Volume (gallons): 0.952.

Product Specs
Boiler Connections:	1" NPT
Boiler Type:	Condensing
Condesate Amount Produced:	0.9 Gal/hr (@ 86°F)
Dimensions (Depth x Width x Height):	13.9" x 17.4" x 33.5"
DOE Rating (BTU):	135,000
Domestic Water Connections:	3/4" NPT
Efficiency (AFUE):	95%
Fuel Type:	Natural Gas (NG) or Propane (LP)
Gas Connection:	3/4" NPT
Inlet Gas Pressure (WC):	3.5 - 10.5" (for NG), 8 - 13" (for LP)
Input (BTU):	36,000 - 151,600
Max. Boiler Output Water Temperature:	190°F
Max. DHW Flow @ 72°F Rise:	4.0.
Max. Elevation:	6,000 ft (3% per 1,000ft de-rating)
Max. Working Pressure:	30 psi
Mounting Type:	Wall-hung (wall-mounted)
Net IBR Rating (BTU):	117,000
System Type:	Hydronic (Hot Water)
Turndown (Modulation) Ratio:	5 : 1
Water Volume (gallons):	0.952
Weight (lbs):	103.2
